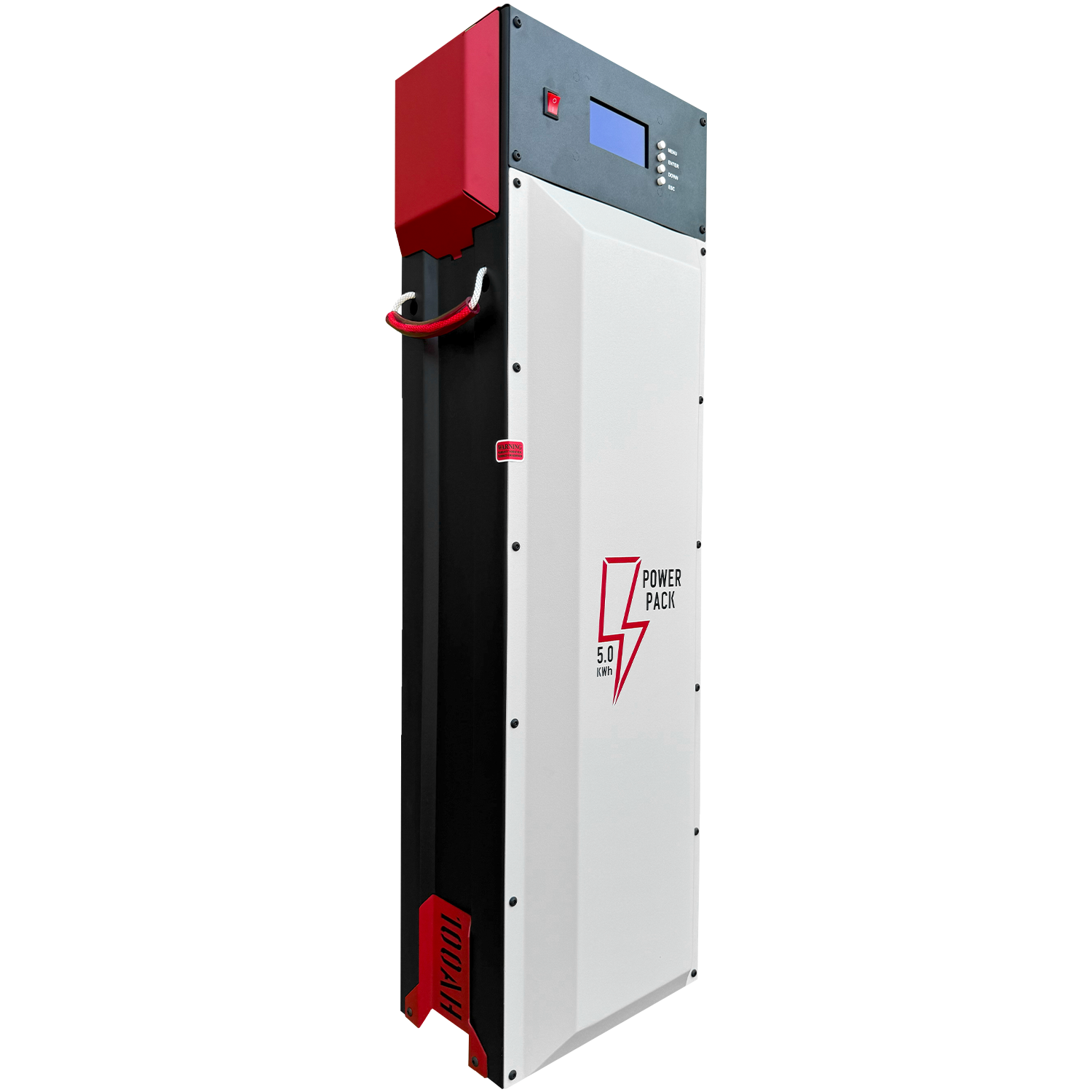

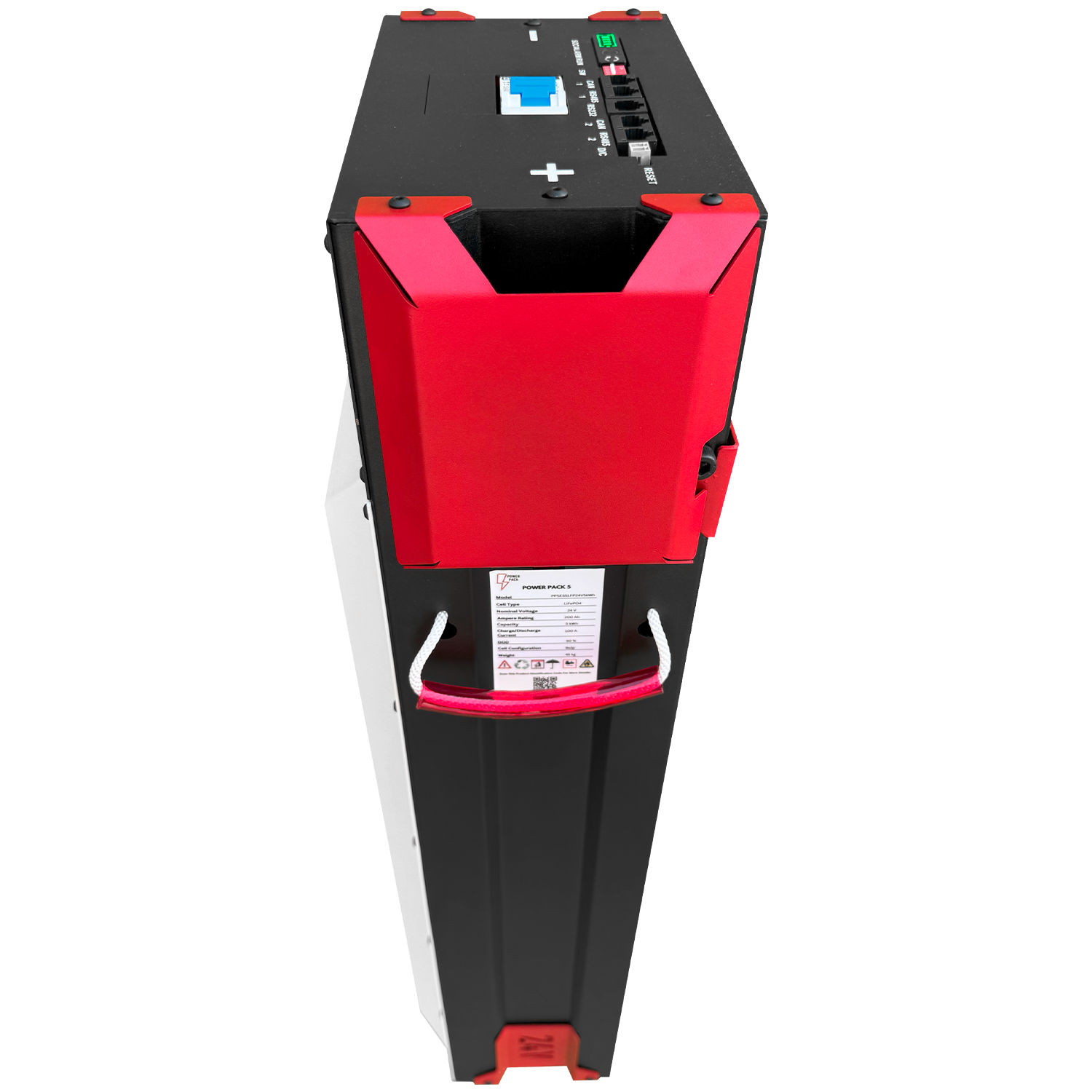

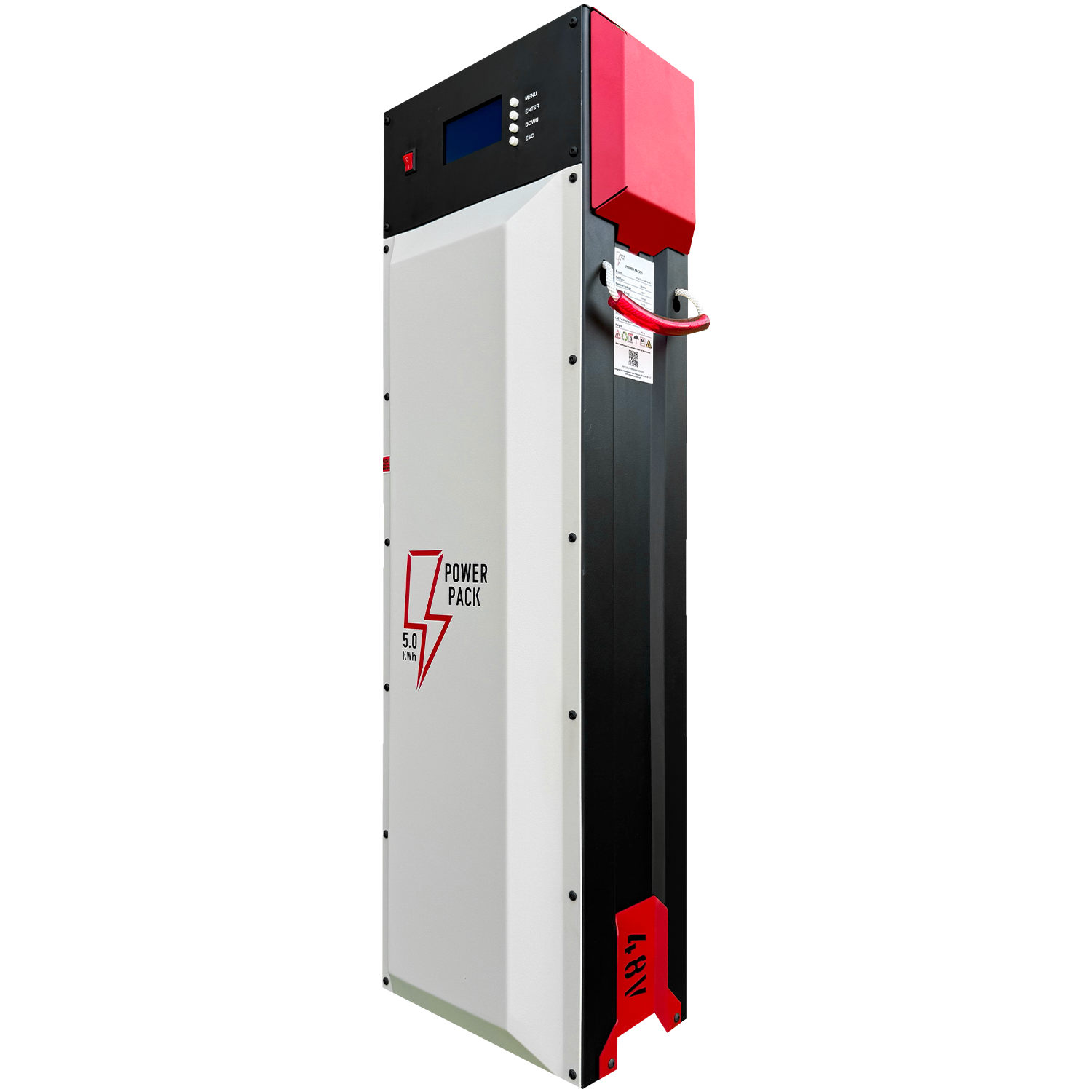

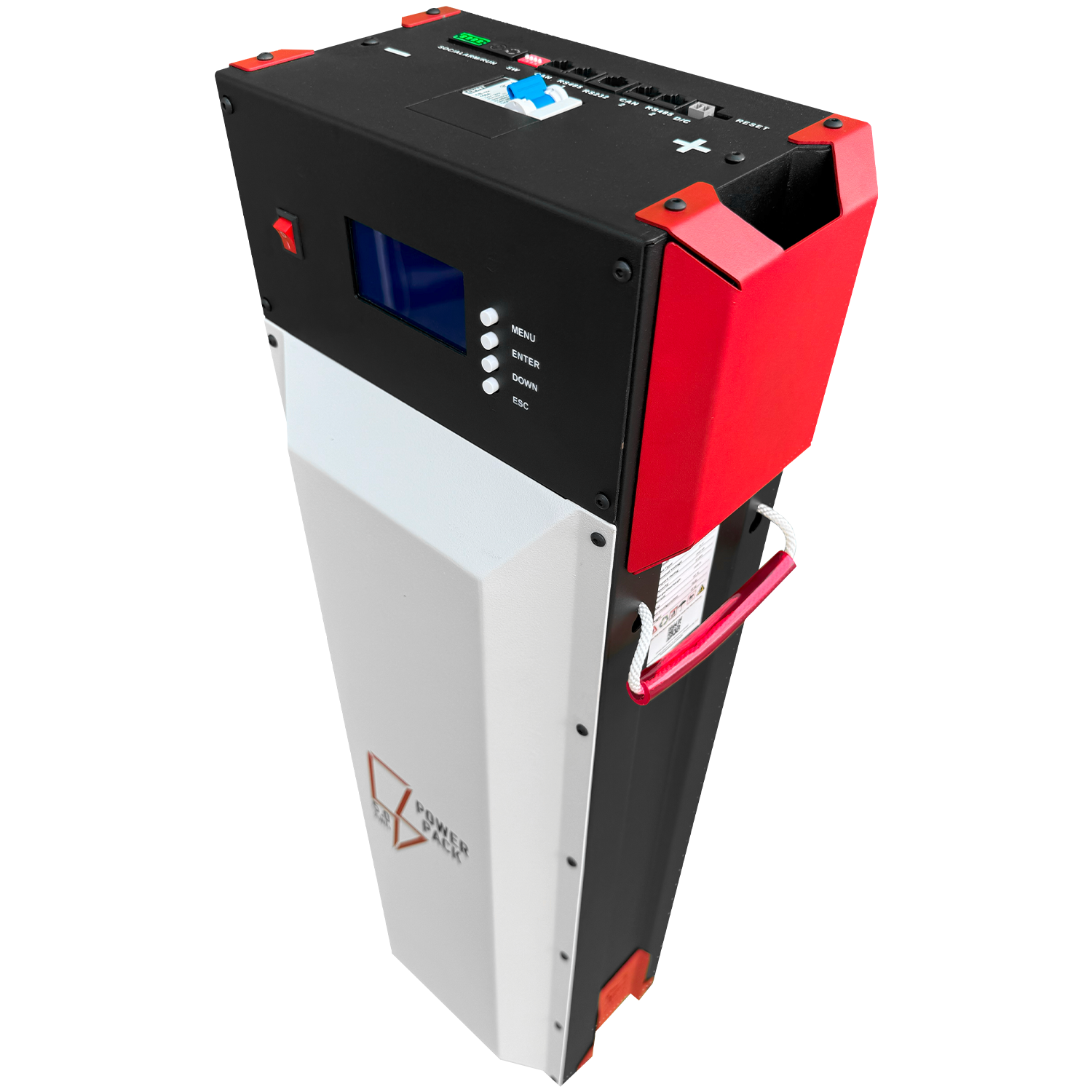

Power Pack 48V 100Ah 5kWh

Power Pack 48V 100Ah battery delivers efficient and long-lasting energy storage. Ideal for homes and businesses, it ensures reliable performance with high durability. Upgrade to uninterrupted power today!

Battery Type	Lithium Iron Phosphate
Nominal Voltage	51.2 V
Nominal Capacity	100 Ah
Nominal Energy	5 kWh
Net Weight	47.5 kg
Dimensions	L 281 x W 181 x H 830 mm
IP Level	20
Parallel Operation	Up to 16 Units
Warranty	5 Years Replacement
Cycle Life	3500-Based On Real World Performance

Model	PPSESSLFP48V5kWh
Battery Type	Lithium Iron Phosphate
Nominal Voltage	51.2 V
Nominal Capacity	100 Ah
Nominal Energy	5 kWh
Charge Voltage	58.4 V
Charge Current (Recomm.)	50 A
Net Weight	47.5 kg
Dimensions	L 281 x W 181 x H 830 mm
Wireless Communication	Bluetooth / Wifi
Cell Configuration	16s
DOD	90 %
Charge Current (Max)	100 A
Discharge Current (Max)	100 A
Battery Level Indicator	SOC Display
On Board Display	Yes
Communication Ports	RS485 / RS232 / CAN
On Board Circuit Breaker	Yes
Operating Temperature-Charge	0° to 45°
Operating Temperature-Discharge	-20° to 60°
Storage Temperature	0° to 40°
Humidity	5 % to 95 %
IP Level	20
Parallel Operation	Up to 16 Units
Warranty	5 Years Replacement
Replaceable Cartridge	Yes
Cycle Life	3500-Based On Real World Performance

Can Power Pack batteries be connected in parallel?

Yes, Power Pack batteries support parallel operation of up to 16 units, allowing you to scale your
energy storage capacity according to your requirements.

What is the warranty period for Power Pack batteries?

Power Pack batteries are covered under a 5 years replacement warranty from the date of purchase.

How do I claim the warranty?

To claim the warranty, contact our customer service team at 0328-2013435 or info@powerpack.com.pk You'll need to provide the invoice and details about the issue. After evaluation, we will guide you on the next steps for replacement.

Can I monitor the battery remotely?

Yes, Power Pack batteries are equipped with advanced features like WiFi and Bluetooth
connectivity. Using the mobile app, you can monitor battery performance, state of charge (SOC),
and other metrics in real time.

Are the batteries suitable for different applications?

Absolutely! Power Pack batteries are versatile and suitable for residential, commercial and
industrial purposes.

Do you provide after-sales services?

Yes, we offer comprehensive after-sales services, including installation support, troubleshooting,
and maintenance. Our remote team is also available to guide you through technical issues.

FEATURES

Longer Lifespan – Up to 5x longer cycle life compared to lead-acid batteries

Solar Energy Storage – Store excess solar power for reliable backup

Smart BMS Protection – Prevents overcharging, overheating, and short circuits

Seamless Remote Access – Bluetooth & WiFi for smart monitoring via mobile apps

Parallel Operation Support – Expandable up to 80kWh for increased power capacity

Backup Power – Engineered for high-power applications with reliable performance

Modular Cartridge Design – Allows cell replacement without the need to replace the entire battery
